Product features
Large filtration area and high flow
Low pressure difference and long life
Wide chemical compatibility?
Clean workshop production ensure the filter practical safety
Filtration accuracy is from 0.1 μ m to 50 μ m. It can meet the requirements of different filtration
Full range of filter size and interface mode
Typical Application
Process water
Vinegar
Aqueous solutions
Beer, wine and spirits
Juice, soft drinks and edible oils
Bulk chemicals
Pharmaceutical intermediates

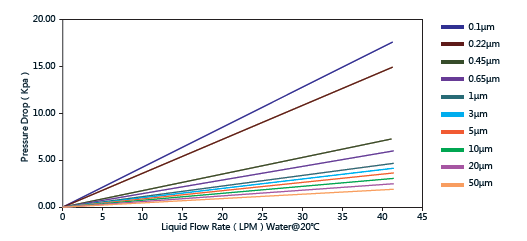

Flow Rate
|
Body?Diameter |
69mm |
|
Length |
5’’,?10’’,?20’’,?30’’,?40’’ |
|
Filter?Media |
PP |
|
Media?Support |
PP |
|
Structural?Components |
PP |
|
Sealing?Ring |
Silicone（EPDM,?Teflon?and?Viton?are?available） |
|
Filtration?Area |
0.65?m2/10’’ |
|
Maximum?Operating?Temperature |
80°C |
|
Maximum?Operating?Differential?Pressure |
Forward?4.0?Bar?@?20℃ |
| Part No. | Pore Size | Length | Connection | Sealing Ring | Inner Core | |
|---|---|---|---|---|---|---|
| CFPPP | 0010=0.1μm | 5 = 5’’ | G=226/Locking tabs/Fin | E=EPDM | P=PP | |
| 0020=0.2μm | 10=10’’ | H=226/locking tabs/Flat | S=Silicone | |||
| 0045=0.45μm | 20=20’’ | I=226/plug / Flat | V=Viton | |||
| 0100=1μm | 30=30’’ | J=222/locking tabs / Fin | T=Teflon | |||
| 0300=3μm | 40=40’’ | K=222/plug / Fin | ||||
| 0500=5μm | L=222/plug / Flat | |||||
| 1000=10μm | M=DOE | |||||
| 2000=20μm | ||||||
| 5000=50μm |
