Features
? Highly asymmetric polysulfone membrane provides excellent dirt holding capacity and flow characteristics
? Hydrophilic polysulfone membrane eliminates the need for prewetting and flushing
? Asymmetric membrane structure provides high flow rates with lower differential pressure and a longer life time
? Widely compatible with cleaning applications in many processes such as developing, etching, and stripping
? Manufactured in controlled clean room environment
Applications
? General-Use water Filtration
? Deionized water systems
? Liquid clarification
? Chemical filtration
? Ulta-Pure water systems
Dimension
? Diameter 69 mm
? Length 5”, 10”, 20”, 30”, 40”
Material of Constructions
? Media Highly Asymmetric Hydrophilic PSU Membrane
? Support Polypropylene (PP)
? Cage/Core/End Polypropylene (PP)
? Sealing EPDM, Viton?, E-FKM

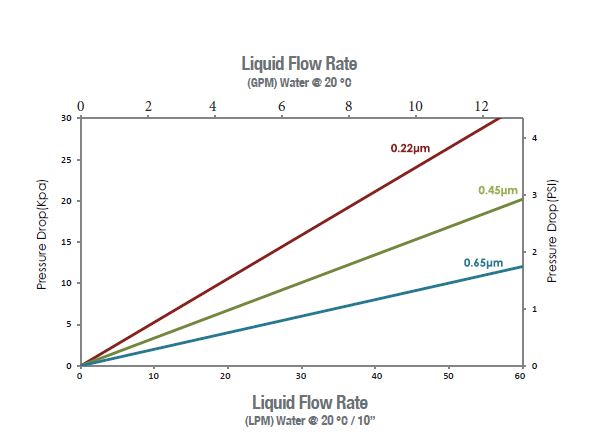

Performance
? Operating Conditions
? Max. Operating Temperature 80 °C
? Max. Operating DP 4 bar @ 21 °C, 2.4 bar @ 80 °C
